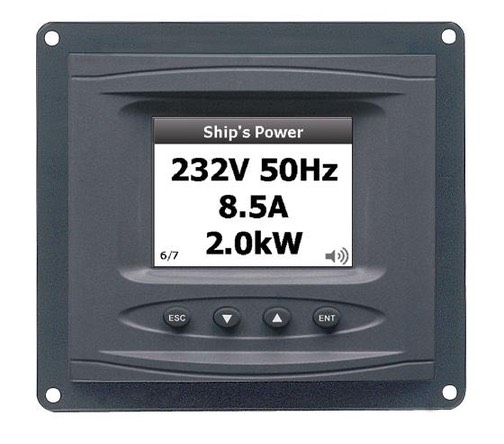

AC Systems Monitor (ACSM), Color, Transducer Transformers80-600-0023-00

The BEP Digital Monitoring System Designed and manufactured by BEP, these state of the art full color monitors are made to meet the systems monitoring requirements of today’s modern vessel and recreational vehicle. Complex AC and DC electrical installations on board are becoming more common place. Additionally the increase in tank monitoring requirements for fuel fresh, grey and black water, accurate monitoring of these systems is essential. The DCSM and ACSM displays feature clear, extra large type face. This allows for more detailed on-screen information and increased clarity. The screen has back lighting for easy night time viewing.

  • 3 Generic user configurable inputs
  • Displays data in analogue, digital and graphic forms
  • Output for load shedding
  • Programmable high/low audio/visual alarms for each input
  • 2.8" Colour QVGA LCD
  • Input voltage 8-32VDC
  • Dimensions: Width 90mm x Height 100mm
  • Backlit keypad
  • Monitors AC volts, amps and frequency
